Examples#

Design#

The examples are intended to showcase easily the usage of a metric or rule. They shall be configured to refer to their corresponding rule using relative paths, for example:

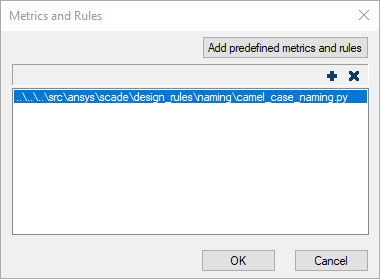

Declare a rule for *Metrics and Rules Checker*

When a rule’s behavior depends on a parameter, the example can define several configurations for Metrics and Rules Checker to demonstrate the alternatives.

The examples are located in the directory ./examples. The structure of this directory must match the structure of ./src/ansys/scade/design_rules.

Tools#

The pre-commit hook check_models ensures there is one example per rule. It issues a warning if an example does not correspond to a rule. This a light verification based on naming rules.
