No pointer branch#

Pointer flows must not branch

Description#

A flow, which type is a pointer, shall not be used more than once in a scope.

The parameter defines a regular expression to identify the pointer types, with the following syntax: -t <regular expression> (default value: -t Ptr.*).

Rationale#

This ensures a strict order on the accesses to the pointed data.

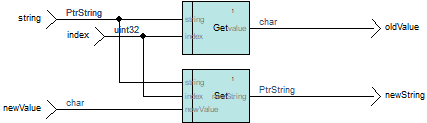

In the example below, which replaces a character in a string, the value of oldValue can be either the former value or the new one.

../../_images/no_pointer_branch_1.png

Verification#

The rule registers to the flows of a Scade model, for example local variables, and raises a violation for each flow which satisfies all these conditions:

  1. Is a pointer

  2. Is referenced more than once in a scope

Message: Illegal branch for <variable name>

Resolution#

The violations can be prevented by applying the following pattern in the design (TODO: new rule?): Every operator with pointers as inputs must output these same pointers.

For example

function Get(string : PtrString; index : uint32)
returns (value : char; newString : PtrString)
let
    ...
    newString = string;
tel

Customization#

When the identification of pointer types by a regular expression is not suitable, it is possible to derive a new class from NoPointerBranch and override the function is_type_pointer.

Either hard-code the alternative algorithm or extend the parameterization of the rule with a new field for the parameter and cache its value in the function on_start.

For example: types=<regular expression>, note=<note type name>.
