Local variable scope#

Declaration scope of a local variable

Description#

The scope of a local variable shall be the least common scope containing all its references.

Rationale#

This avoids useless flow definitions and/or default directives. This also leads to better generated code and efficiency since KCG cannot always perform the optimization.

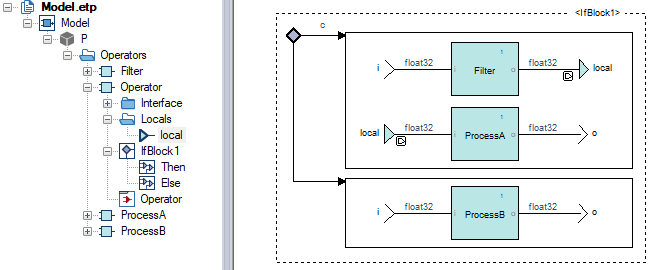

In the example below, the local variable local is declared in the operator’s scope although it is referenced only in P::Operator/IfBlock1:then:.

../../_images/scope_of_locals_1.png

Verification#

The rule registers to the flows of a Scade model, for example local variables, and raises a violation for each flow which is not declared in the least common scope of its references.

Message: The local variable <variable name> shall be declared in its least common scope <scope path>.

Resolution#

A local variable cannot be dragged and dropped to a new scope since the underlying editing operation is cut/paste. Proceed as follows:

  • Find all the references of the variable with the command Navigate/Browse/References

  • Rename the variable

  • Create a new variable in the appropriate scope

  • Replace all the references with the new variable, either by drag and drop or by typing the new name

  • Make sure the old variable is no more referenced with the command Navigate/Browse/References

  • Delete the old variable

Customization#

N/A.
